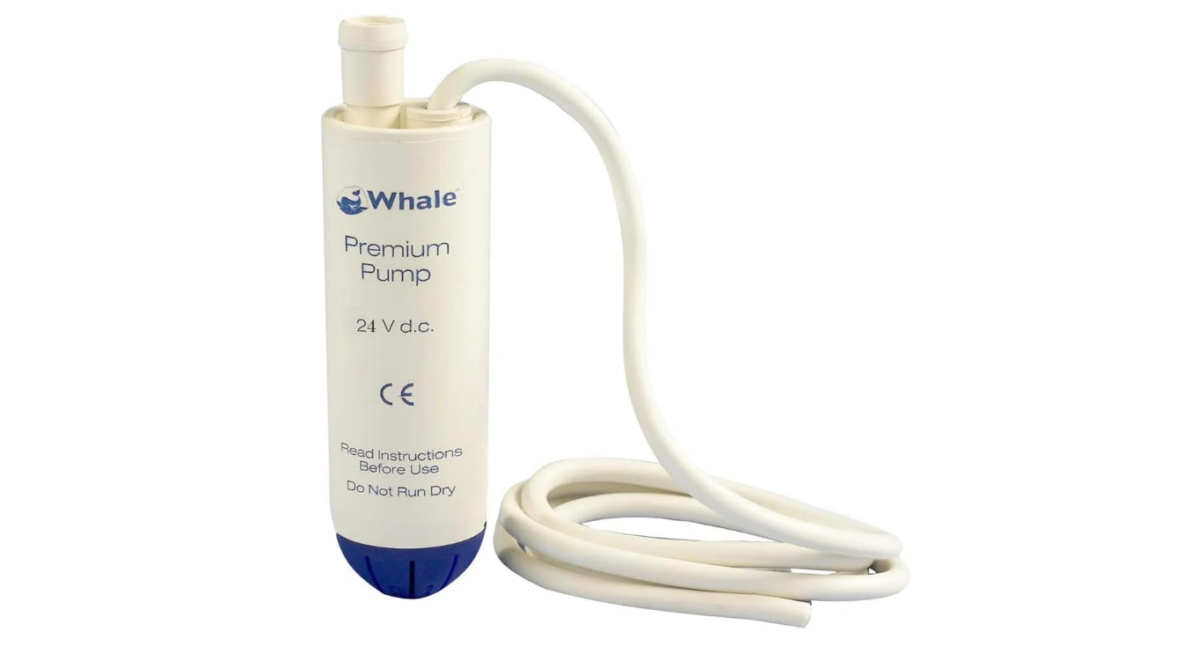

Higher Flow Rates and Greater Life. Compact, quiet, lightweight design suitable for use with pressure switch
and micro switch systems. Ideal for use to pump from external water containers.

Maximum continuous operation should not exceed 15 minutes
Do not run pump dry as it will cause pump damage
Do not use to pump water that is over 60oc

We recommend the pump stands vertically in the tank
Before switching on, place the pump in water and shake for a few
seconds to release trapped air.

This will ensure successful priming
and should be repeated after refilling the water tank

Add an in-line pump into a system to boost water flow

Discharge head 0m (0ft) - 13.2 litres/min open flow, current draw 1.8amps
Discharge head 3m (9ft) 9.75 litres/min open flow, current draw 1.45amps
Max pressure 15psi (1.0bar)
Max run time 15 minutes in any one period of use
