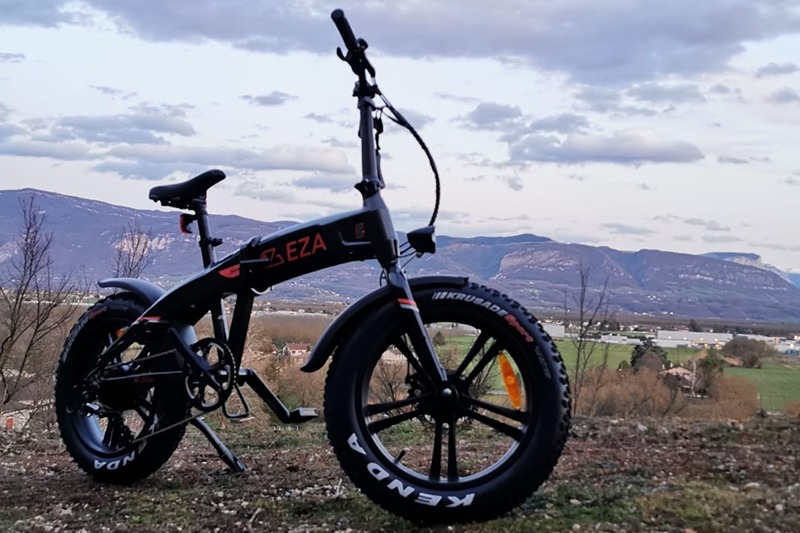

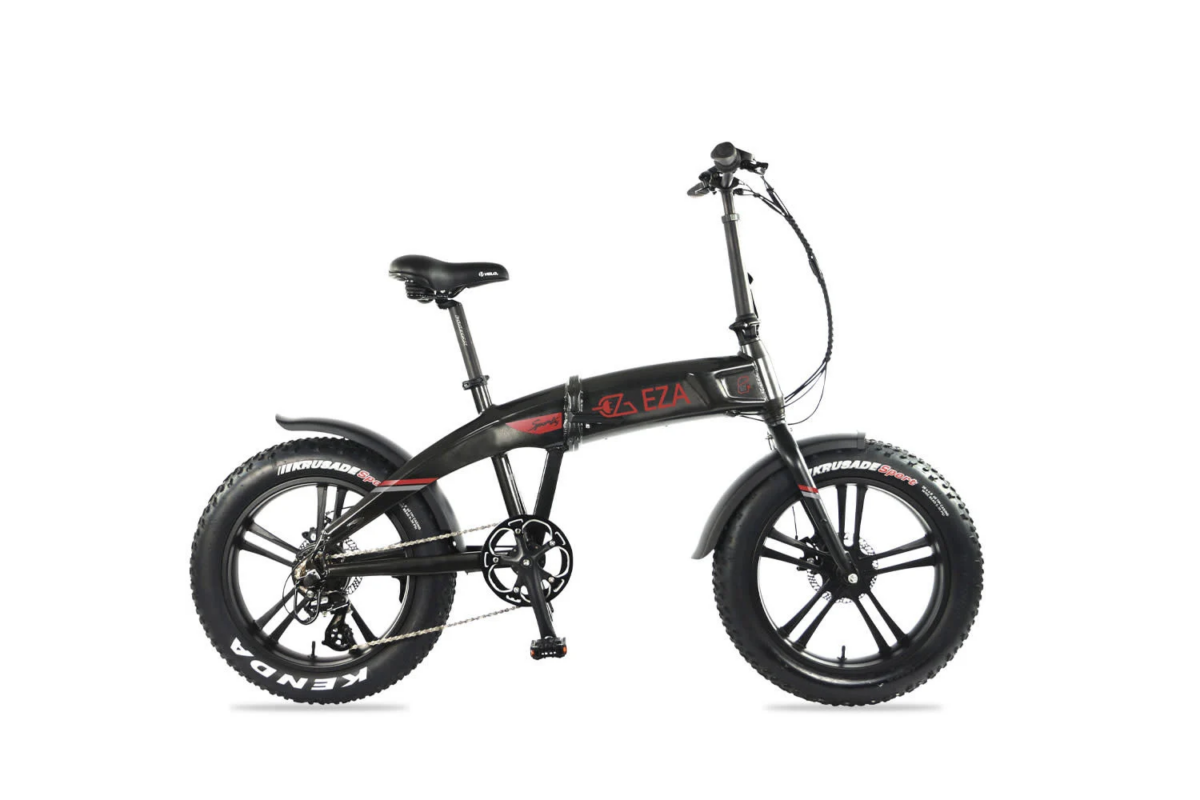

An electric folding bike perfect for off road terrain with its 20" wheels that are fitted with chunky tyres. With a range of 40-50 kilometres and 5 levels of pedal assist, you can go further than ever before.
A stand-out feature of the e-bike is its backlit LCD display which provides the user with an array of information, including:
Assistance level.
Mileage - partial and total.
Speed - instant, maximum, average.
Ride time.
Battery gauge.
Key Features:
20" wheels.
40-50km range.
Battery integrated into frame.
Digital display.
Disc brakes.
Mud guard.
Technical Specifications:
General:
Weight With / Without Battery: 29kg/26.4kg.
Folded Dimensions: 81 x 46 x 75cm.
Unfolded Dimensions: 172 x 63 x 123cm.
Packaged Dimensions: 172 x 29 x 89cm.
Maximum Recommended Load: 120kg.
Maximum Assistance Speed: 25km/h.
Electrical:
Type Of Motorisation: Rear hub.
Maximum Motor Torque: 40 N.m.
Sensor: Rotation sensor.
Support: 5 assistance modes. OFF - ECO - TOUR - SPORT - TURBO, plus a 6km/h walking assistance function.
Battery: 374Wh / 10.4Ah / 36V. Internal. Removable with key lock.
Autonomy: 40-50km depending on conditions.
Charging Time: 5-6 hours using a 220V 2A charger (supplied).
Lighting: Front XC-263 / Rear XC-269R.
Mechanical:
Frame: Aluminium, unibody frame, folding.
Frame Size: One size fits all.
Transmission: Shimano Altus 7 speed, 46 teeth chain ring, 14-28 teeth cassette.
Braking: TEKTRO 160mm mechanical disc.
Fork: Rigid steel.
Rims: Double-walled aluminium.
Tyres: KENDA 20 inch - maximum PSI is 0.5/0.8 bar.
Saddle: SR Comfort with memory foam.
Seat Post: Aluminium.
Pedals: Folding, anti-slip with a polypropylene frame and stainless steel bearings.
Stand: Side stand.
Warranty:
Electrical Component Warranty: 2 years.
European Standards: EN 15194:2017.
- Part Number: 400153BI
